AliVttSubtitleView Class Reference

VTT字幕视图主类 More...

#include "AliVttSubtitleView.h"

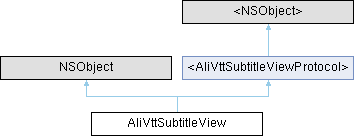

Inheritance diagram for AliVttSubtitleView:

Instance Methods
(void)	- destroy
	销毁字幕视图，清理所有资源
(nullable AliWebVttHeader *)	- getVttHeader:
	获取指定轨道的VTT头部信息
(void)	- hide:trackIndex:subtitleID:
	隐藏字幕
(instancetype)	- init
	初始化字幕视图
(void)	- setRenderImplFactory:
	设置自定义渲染实现工厂
(void)	- setVttHeader:trackIndex:Header:
	设置VTT头部信息
(void)	- show:trackIndex:subtitleID:subtitle:
	显示字幕
Instance Methods inherited from <AliVttSubtitleViewProtocol>
(void)	- clearAll
	清理所有字幕
(void)	- setView:
	设置显示视图

Class Methods
(void)	+ setConstClass:
	设置全局常量类

Properties
BOOL	isEnableSubtitleRender
	是否启用字幕渲染 Whether subtitle rendering is enabled
AliVttRenderImplFactoryBlock	renderFactory
	客户自定义渲染实现工厂 Client custom rendering implementation factory
NSMutableDictionary< NSNumber *, AliVttRender * > *	renderMap
	轨道索引到渲染器的映射表 Mapping table from track index to renderer

Detailed Description

VTT字幕视图主类

字幕系统的入口类，管理多轨道字幕的渲染。 实现AliVttSubtitleViewProtocol协议，与播放器集成。

// 基本使用示例
AliVttSubtitleView *subtitleView = [[AliVttSubtitleView alloc] init];
[player setExternalSubtitleView:subtitleView];

// 自定义渲染实现
[subtitleView setRenderImplFactory:^AliVttRenderImpl*() {
    return [[CustomVttRenderImpl alloc] init];
}];

// 自定义常量配置
[AliVttSubtitleView setConstClass:[MySubtitleConst class]];

Method Documentation

destroy

- (void) destroy

销毁字幕视图，清理所有资源

getVttHeader:

- (nullable AliWebVttHeader *) getVttHeader:

(int)

trackIndex

获取指定轨道的VTT头部信息

Parameters

trackIndex

轨道索引

Returns

WebVttHeader对象，如果未找到或未初始化则返回nil

Note

该方法返回解析后的WebVTT头部信息，包含样式和区域定义

hide:trackIndex:subtitleID:

- (void) hide:		(AliPlayer *)	player
trackIndex:		(int)	trackIndex
subtitleID:		(long)	subtitleID

隐藏字幕

Parameters

player	播放器对象
trackIndex	轨道索引
subtitleID	字幕ID

init

- (instancetype) init

初始化字幕视图

Returns

初始化的字幕视图实例

setConstClass:

+ (void) setConstClass:

(Class)

constClass

设置全局常量类

Parameters

constClass

常量类的Class对象

Note

静态方法，影响所有实例的默认配置

setRenderImplFactory:

- (void) setRenderImplFactory:

(AliVttRenderImplFactoryBlock)

factory

设置自定义渲染实现工厂

Parameters

factory

渲染实现工厂块

Note

允许客户端提供自定义的渲染逻辑

setVttHeader:trackIndex:Header:

- (void) setVttHeader:		(AliPlayer *)	player
trackIndex:		(int)	trackIndex
Header:		(NSString *)	header

设置VTT头部信息

Parameters

player	播放器对象
trackIndex	轨道索引
header	VTT头部字符串

show:trackIndex:subtitleID:subtitle:

- (void) show:		(AliPlayer *)	player
trackIndex:		(int)	trackIndex
subtitleID:		(long)	subtitleID
subtitle:		(NSString *)	subtitle

显示字幕

Parameters

player	播放器对象
trackIndex	轨道索引
subtitleID	字幕ID
subtitle	字幕内容

Property Documentation

isEnableSubtitleRender

- (BOOL) isEnableSubtitleRender

readwriteatomicassign

是否启用字幕渲染 Whether subtitle rendering is enabled

renderFactory

- (AliVttRenderImplFactoryBlock) renderFactory

readwritenonatomiccopy

客户自定义渲染实现工厂 Client custom rendering implementation factory

renderMap

- (NSMutableDictionary<NSNumber *, AliVttRender *>*) renderMap

readwritenonatomicstrong

轨道索引到渲染器的映射表 Mapping table from track index to renderer

---

The documentation for this class was generated from the following file:

• AliVttSubtitleView.h
